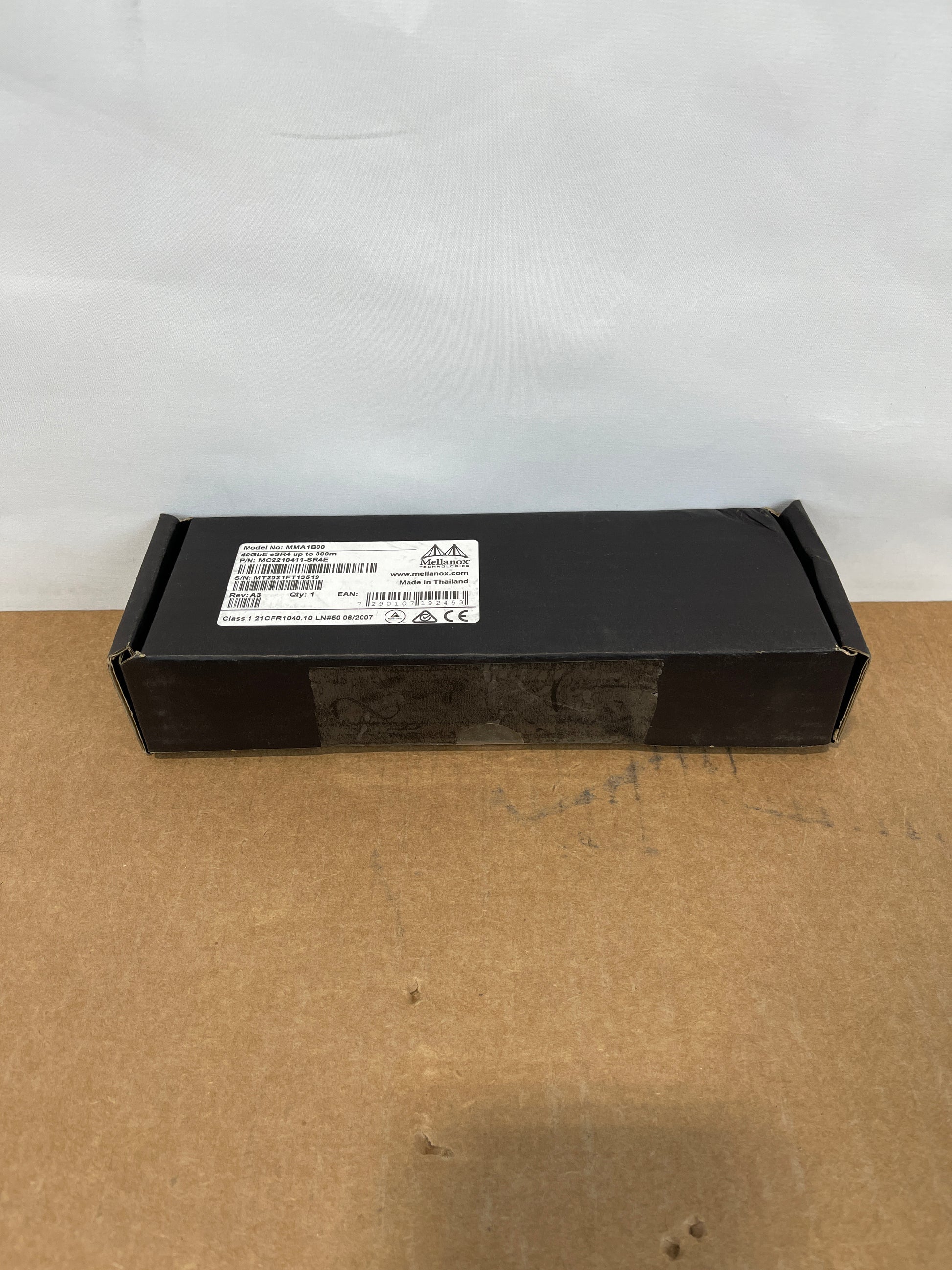

Mellanox Active Optical Module

Model #: MC2210411-SR4E

Ref #: 64971

Condition: NEW

40Gb/s QSFP+ MMF Optical Transceiver
NVIDIA MC2210411-SR4E is a 4-channel, pluggable, QSFP+, VCSEL-based (Vertical Cavity Surface Emitting Laser) optical transceiver designed for use in 40Gb/s networks operating at 4x10.3125Gb/s. This transceiver incorporates NVIDIA integrated circuit technology, which combines high performance at low power. The transceiver operates over parallel multi-mode fiber (MMF), using a nominal wavelength of 850nm, and is SFF-8436 compliant.

MC2210411-SR4E transceiver has a standard QSFP+ connector on the electrical side towards the host system for power, control/monitoring and high-speed data. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector. The transceiver can operate at 10.3125Gb/s without retiming.

The transceiver provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and VCSEL bias.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
